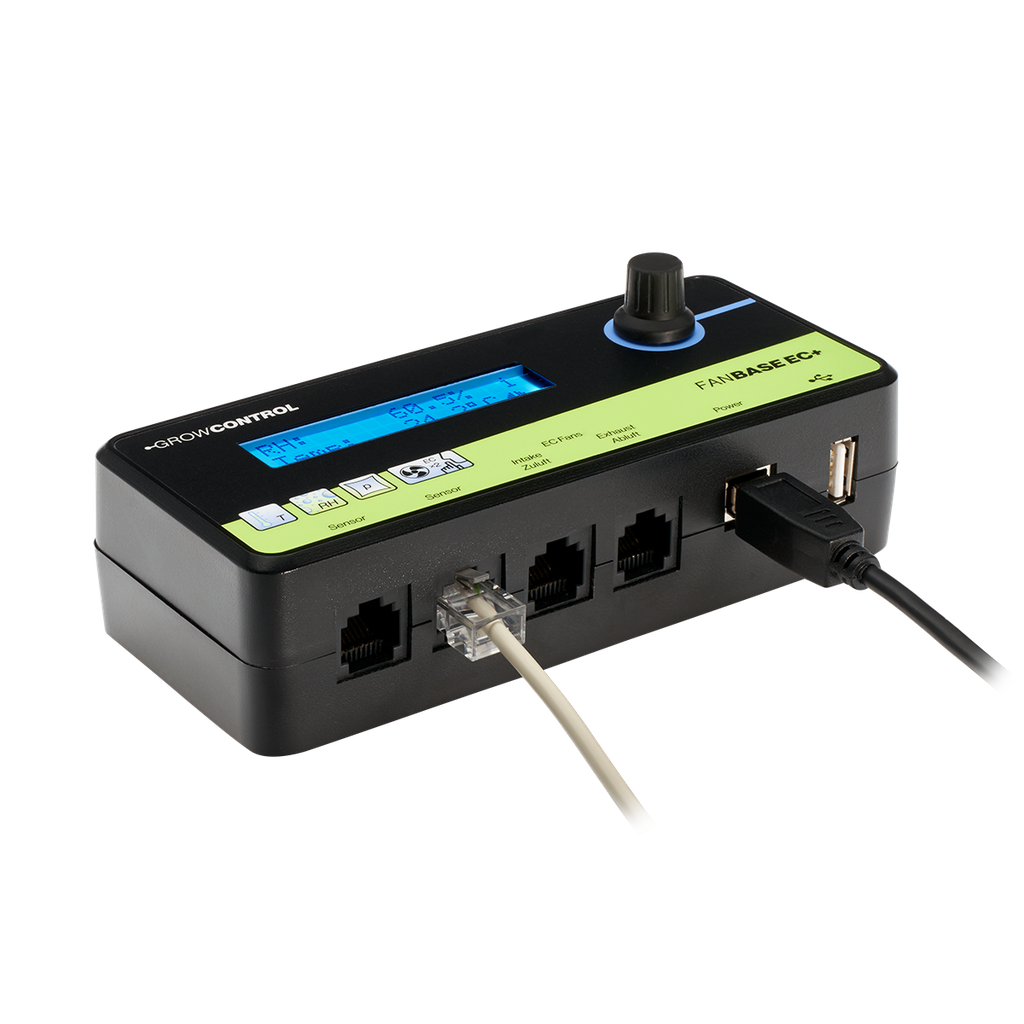

GrowControl FanBase EC+

FanBase EC+ maintains the desired room temperature and ensures a constant negative pressure, preventing odors from escaping. Additionally, humidity can be reduced via the exhaust air. FanBase EC+ is suitable for controlling EC fans .

The negative pressure can either be precisely controlled with our PresSense negative pressure sensor or set as the difference between supply and exhaust air.

Extensive setting options via the easy-to-use menu and excellent coordination of the control algorithms ensure ideal conditions for your plants.

A standard USB power supply, such as the one supplied with mobile phones, is required for operation.

This power adapter is not included. Further details can be found under "Product Details."

The most important functions:

• Temperature control
• Humidity control
• Vacuum control
• Different settings for day/night
• USB interface for updates

The easy-to-use and well-structured menu allows for many settings and the reading of various values.

EC fans for supply and exhaust air, the included humidity and temperature sensor and a negative pressure sensor can be connected to the RJ45 sockets.

Scope of delivery:

Controller FanBase EC+

Humidity and temperature sensor

Three-hole disc for hanging the sensor

Power cable (USB-A to USB-B approx. 2m)

Screws, dowels and drilling template for wall mounting

Quick guide

Not included in delivery:

Plug-in power supply with USB-A socket 5V, at least 1A

Made in Germany

Dimensions (LxWxH) without connected cables	150mm x 65mm x 60mm
Cable length sensor humidity/temperature (RH/T)	approx. 5m
Length of USB cable power supply	approx. 2m
Power supply	5V DC 1A
Protection type/protection class	IP40/SELV
Repeatability accuracy sensor RH/T	±0.1%RH/±0.2°C
Absolute sensor accuracy RH/T	±2%RH/±0.2°C
Permissible ambient temperature	10-40°C

Downloads:

FanBase EC plus operating instructions

Quick Guide FanBase EC Plus
