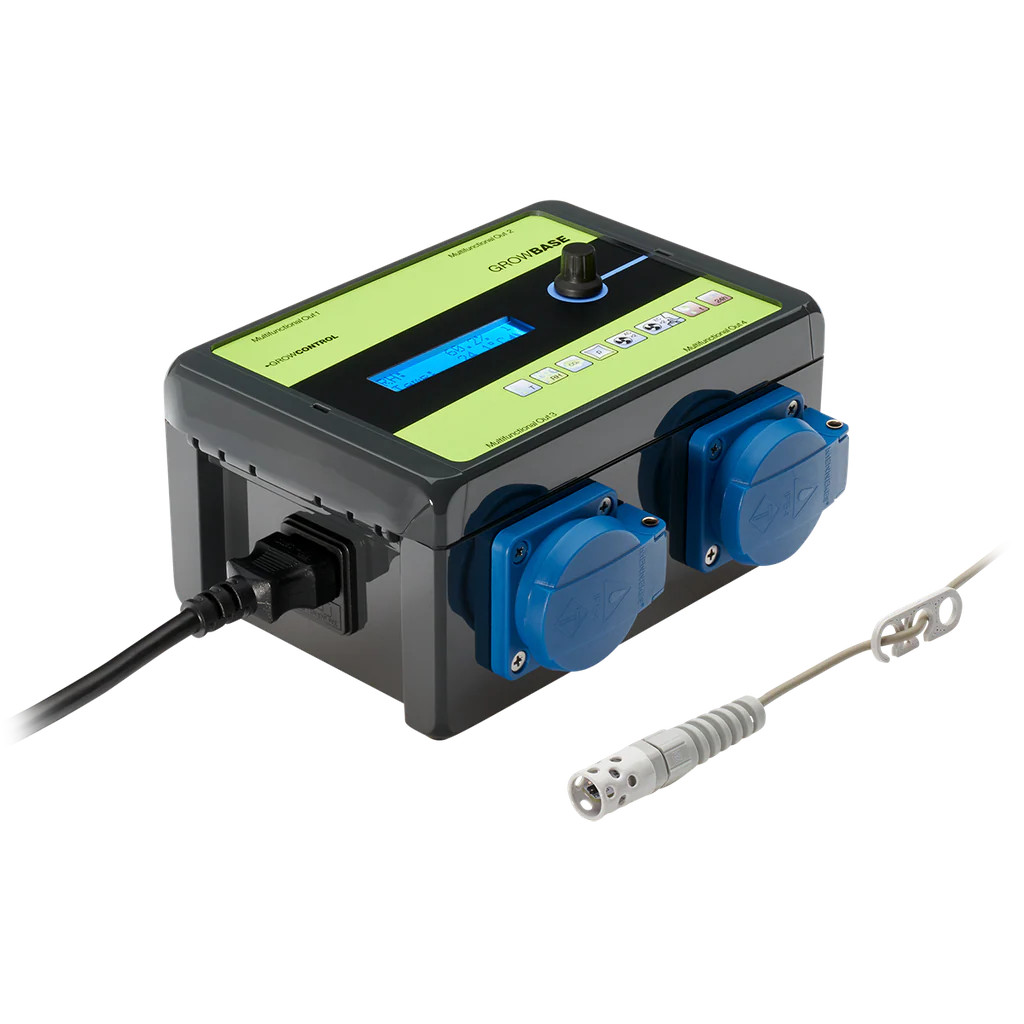

GrowControl GrowBase

GrowBase is the control center for the ambitious indoor gardener. Various devices and sensors can be connected. The four sockets allow the operation of different devices, as they can be configured for different functions. GrowBase is equally suitable for controlling EC and AC fans, thus guaranteeing maximum flexibility.

Extensive setting options via the easy-to-use menu and excellent coordination of the control algorithms ensure ideal conditions for your plants.

The most important functions:

Temperature control

Humidity control

CO₂ regulation

Vacuum control

Dimming of compatible lights including sunrise and sunset (0-10V/1-10V)

Various timers: daily timer, interval timer, event timer

USB interface for updates and nice future features

DC output (MOSFET) for relays/contactors

The easy-to-use and well-structured menu allows for a wide range of settings and the display of various values. Each socket, as well as the DC output, can be assigned a specific function. Most values ​​can be set separately for the day and night phases.

The following can be connected to the RJ45 sockets on the side:

EC fan(s) for exhaust air

EC fan(s) for supply air

Lights with 0-10V/1-10V interface

External relays/contactors

Humidity and temperature sensor (1x included)

CO₂ sensor

Vacuum sensor

Temperature sensor for heating mat

GrowBase maintains the desired temperature and humidity in the greenhouse. The controller ensures a consistent negative pressure, preventing odors from escaping. Additional timer functions (daily timer, interval timer, and event timer) are available.

These devices can be connected to the sockets:

AC supply air fans

AC exhaust fans

Lights

humidifier

Dehumidifier

Irrigation pumps

Recirculation fans

Heating mats

CO₂ valves and CO₂ generators

Made in Germany

Scope of delivery:

• Controller GrowBase
• Humidity and temperature sensor
• Three-hole disc for hanging the sensor
• 1x power cable
• Quick guide
• Screws, dowels and drilling template for wall mounting

Dimensions (LxWxH) without connected cables	190mm x 170mm x 120mm
Cable length sensor for temperature (T)/humidity (RH)	approx. 5m
Length of the power cable	approx. 2m
Power supply	100-240V ~ 7A 50-60Hz
Output power max. “Multifunctional Out 1-4” (each)	600VA (W) @ 230V 310VA (W) @ 120V 2.6A
Output power max. “Multifunctional Out 1+2+3+4” (sum)	1600VA (W) @ 230V 840VA (W) @ 120V 7A
Output Multifunctional Out 5	12-24V DC 1A max.
Output current 0-10V outputs max.	20mA
Protection type/protection class	IP42 / double insulation
Repeatability accuracy sensor RH/T	± 0.1% RH / ± 0.2 °C
Absolute sensor accuracy RH/T	± 2% RH / ± 0.2 °C
Permissible ambient temperature	10-40 ° C

Downloads:

GrowBase user manual

Quick Guide GrowBase
