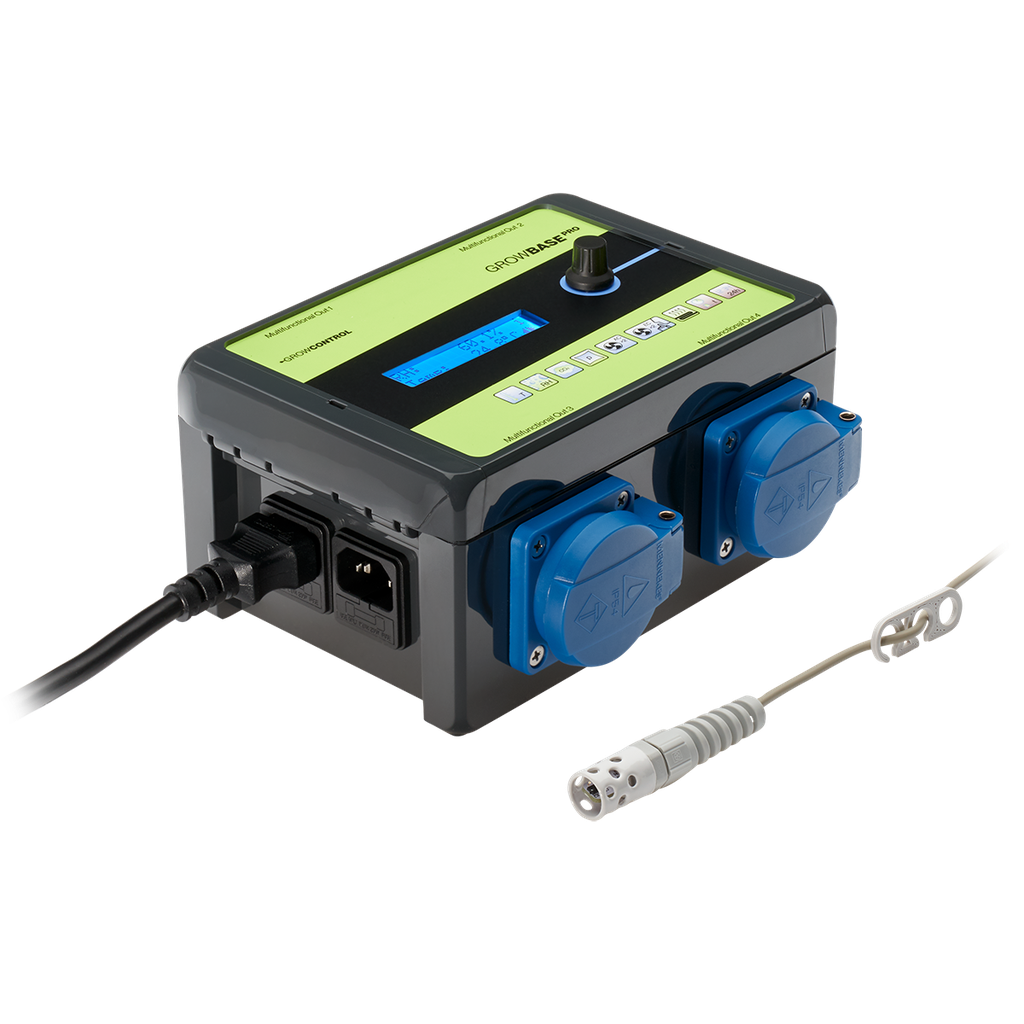

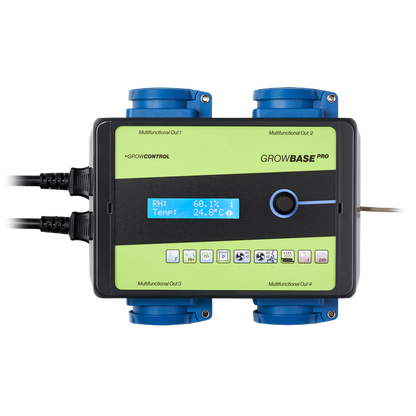

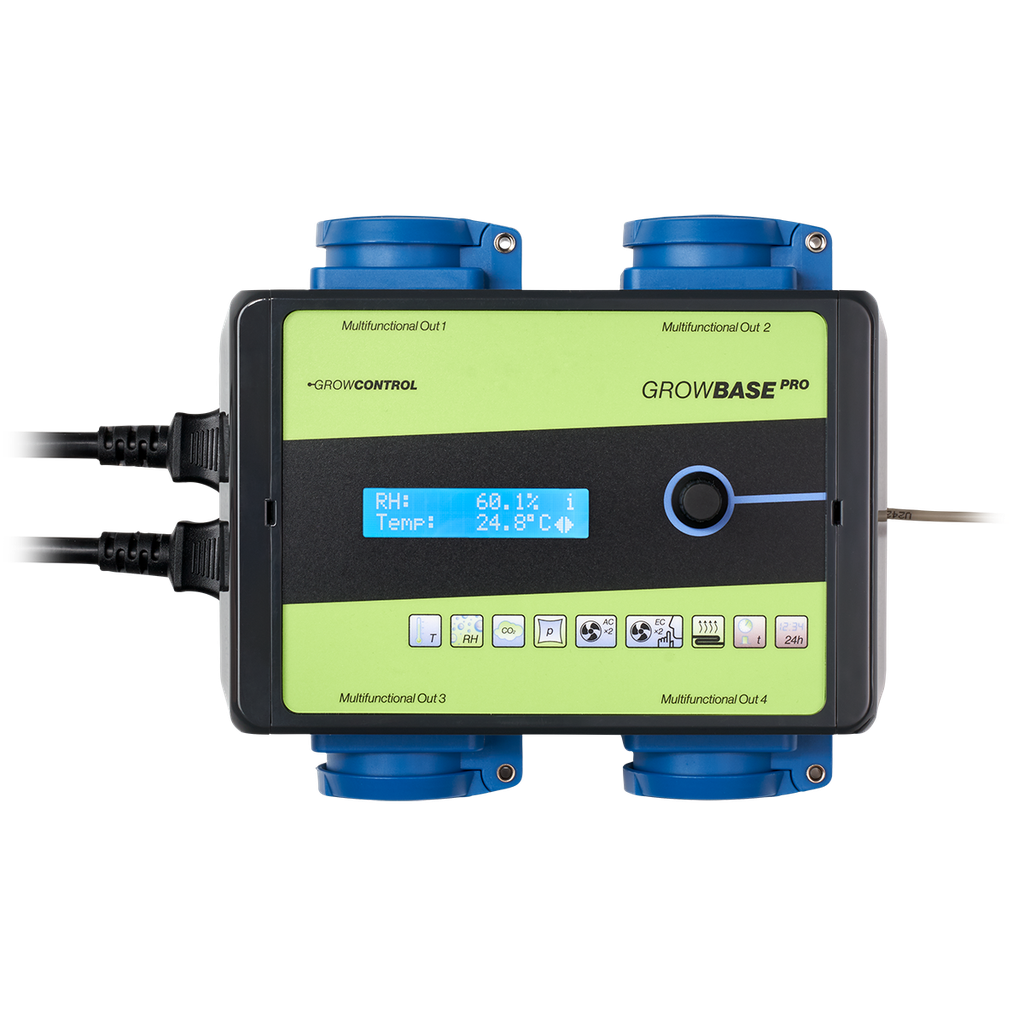

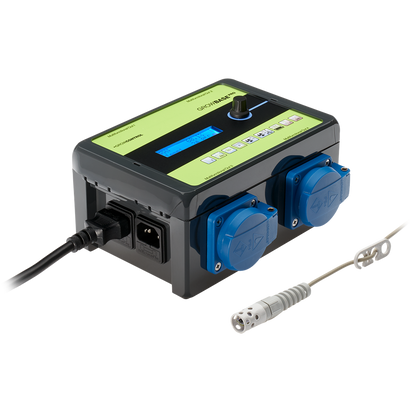

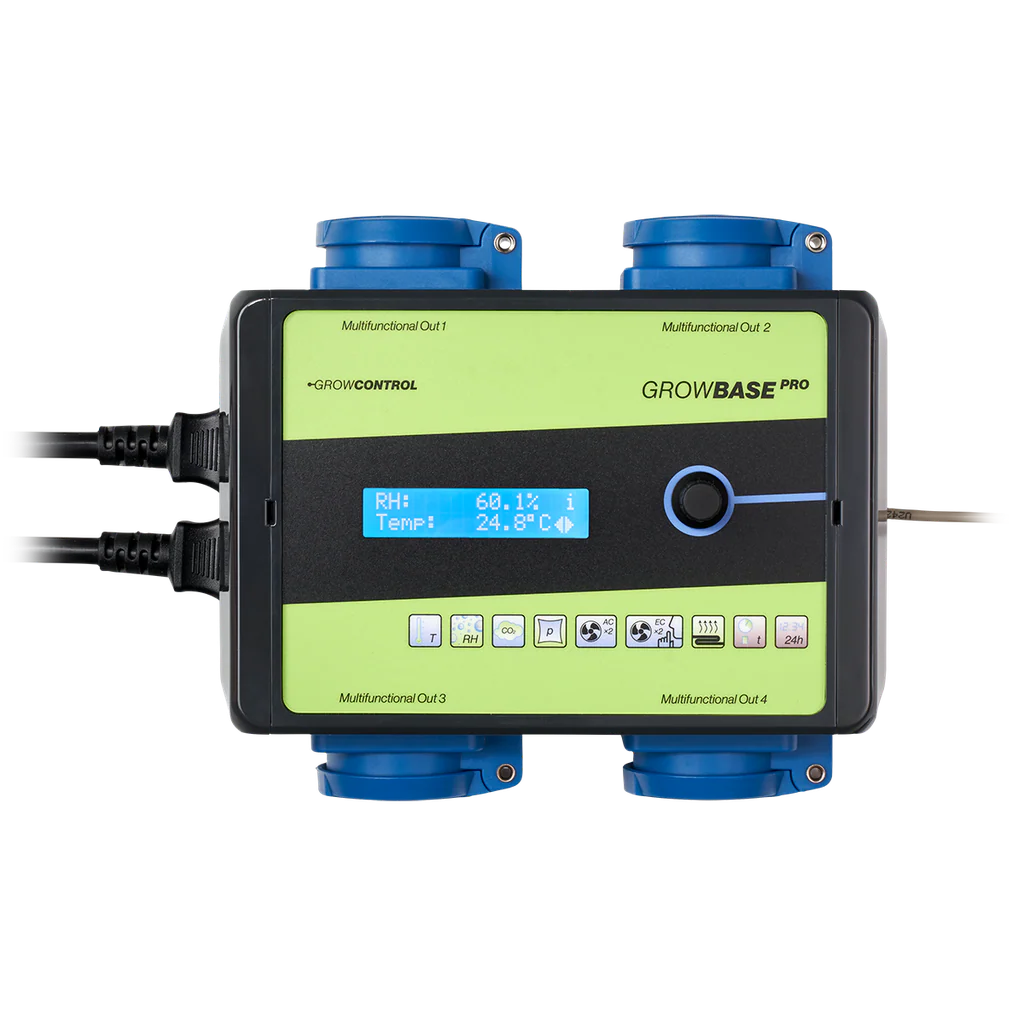

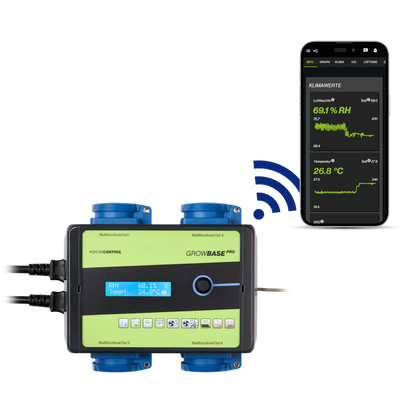

GrowControl GrowBase Pro

GrowBase Pro is the control center for the ambitious indoor gardener, as it precisely monitors all climate factors at all times. Various devices and sensors can be connected. The four sockets allow the operation of different devices, as they can be configured for a variety of functions. GrowBase Pro is equally suitable for controlling EC and AC fans, thus guaranteeing maximum flexibility.

Extensive setting options via the easy-to-use menu and excellent coordination of the control algorithms ensure ideal conditions for your plants.

The most important functions:

Temperature control

Humidity control

VPD regulation

CO₂ regulation

Vacuum control

Dimming of compatible lights including sunrise and sunset (0-10V/1-10V)

Inrush current limiter and 2-pole shutdown for the fourth socket: (2300W)

Various timers: daily timer, interval timer, event timer

Multi-sensor: Multiple sensors of the same type

USB interface for updates and nice future features

DC output (MOSFET) for relays/contactors

Made in Germany

The easy-to-use and well-structured menu allows for a wide range of settings and the display of various values. Each socket, as well as the DC output, can be assigned a specific function. Most values ​​can be set separately for the day and night phases.

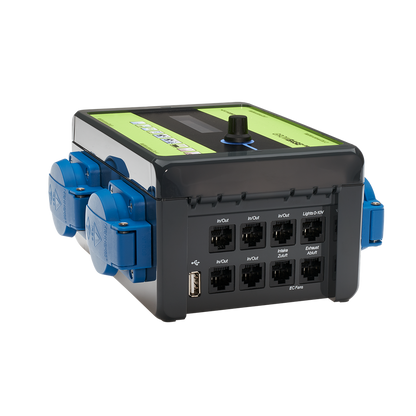

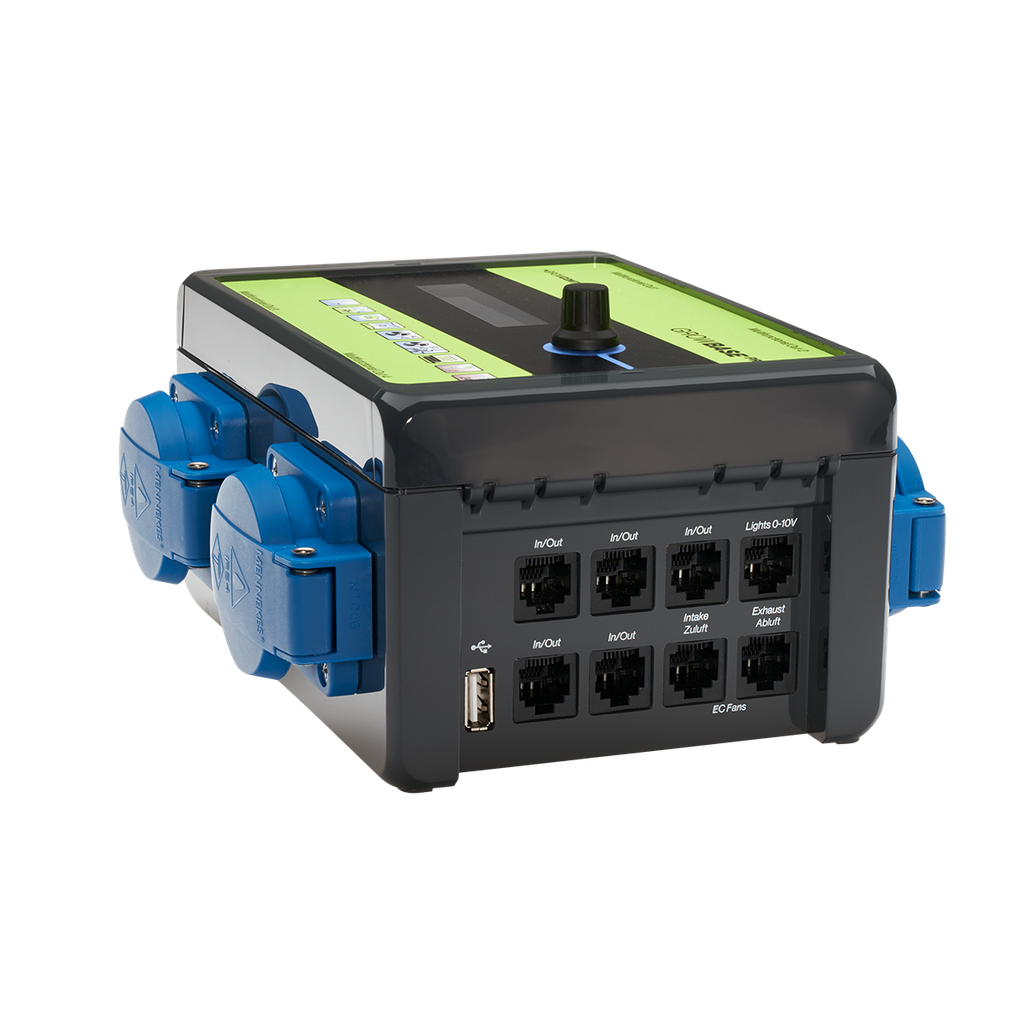

The following can be connected to the RJ45 sockets on the side:

EC fans for exhaust air

EC fans for supply air

Lights with 0-10V/1-10V interface

External relays/contactors

Humidity and temperature sensor(s) (1x included)

CO₂ sensor(s)

Vacuum sensor(s)

Leaf temperature sensors

Temperature sensors for heating mats

PowerExtender (additional sockets)

GrowBase Pro maintains the desired temperature and humidity in the greenhouse. The controller ensures a consistent negative pressure, preventing odors from escaping. Additional timer functions (daily timer, interval timer, and event timer) are available.

The fourth outlet can handle up to 2,300 watts. This outlet has a double-pole disconnect and an inrush current limiter. Both are recommended for LED lights.

These devices can be connected to the sockets:

AC supply air fans

AC exhaust fans

Lights

humidifier

Dehumidifier

Irrigation pumps

Recirculation fans

Electric heaters

cooling

Heating mats

CO₂ valves and CO₂ generators

Scope of delivery:

GrowBase Pro Controller

Humidity and temperature sensor

Three-hole disc for hanging the sensor

2x power cables

Quick guide

Screws, dowels and drilling template for wall mounting

Dimensions (LxWxH) without connected cables	190mm x 170mm x 120mm
Cable length sensor for temperature (T)/humidity (RH)	approx. 5m
Length of the power cable	approx. 2m
Power supply 1 (For the device and Multifunctional Out 1-3)	100-240V ~ 7A 50-60Hz
Power supply 2 (For “Multifunctional Out 4”)	100-240V ~ 10A 50-60Hz
Output power “Multifunctional Out 1, 2, 3” (each)	1200VA (W) @ 230V 620VA (W) @ 120V 5.2A
Output power “Multifunctional Out 1+2+3” (total)	1600VA (W) @ 230V 840VA (W) @ 120V 7A
Output power “Multifunctional Out 4”	2300VA (W) @ 230V 1200VA (W) @ 120V 10A
Output Multifunctional Out 5	12-24V DC 1A max.
Output current 0-10V outputs max.	20mA
Protection type/protection class	IP42 / double insulation
Repeatability accuracy sensor T/RH	± 0.1% RH / ± 0.2 °C
Absolute sensor accuracy T/RH	± 2% RH / ± 0.2 °C
Permissible ambient temperature	10-40 ° C

Downloads:

GrowBase Pro User Manual

Quick Guide GrowBase Pro
