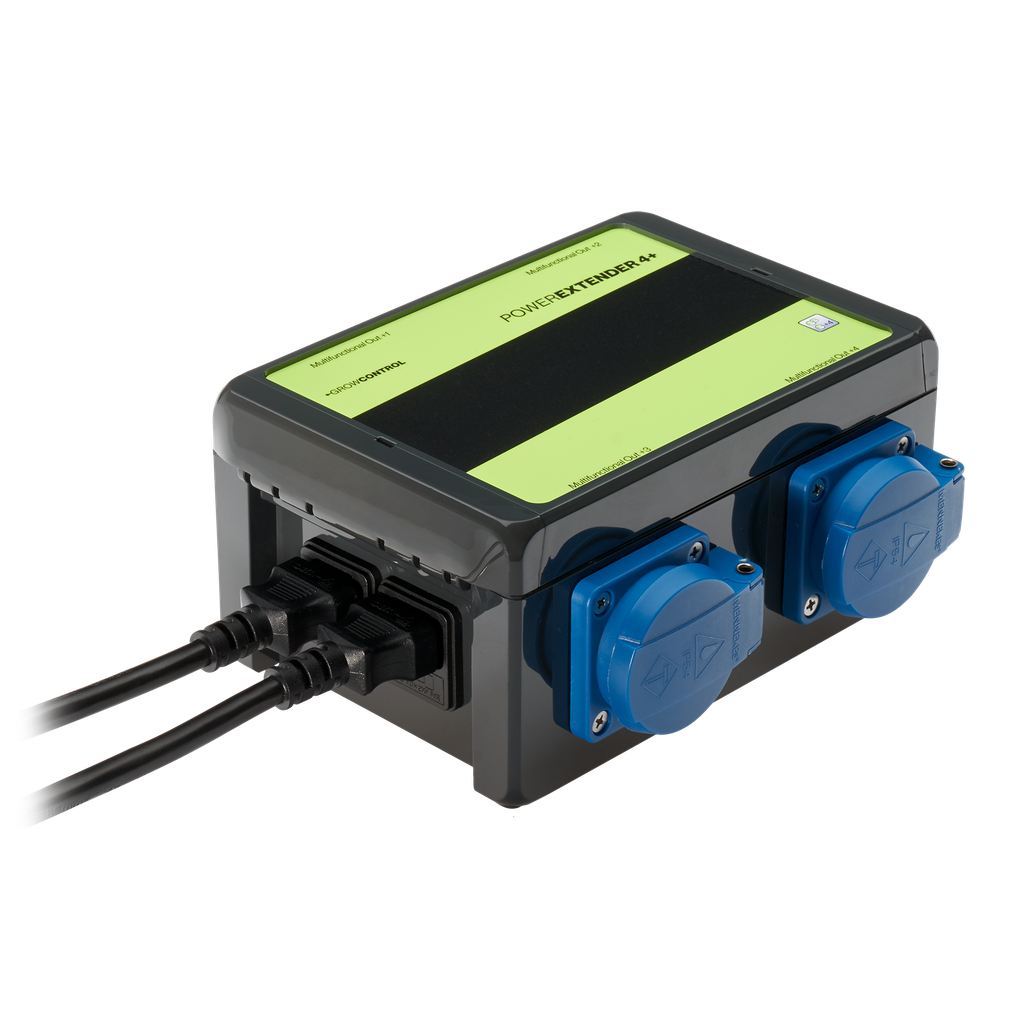

GrowControl PowerExtender 4+

With the PowerExtender 4+, the number of outlets on GrowBase Pro can be expanded by four. The two devices are connected using the included RJ45 cable. Once the device is connected to GrowBase Pro, the additional outlets appear in the menu, and functions can be assigned to the individual outlets.

Two of the four outlets can handle up to 2,300 watts. These outlets feature double-pole disconnection and inrush current limitation. Both are recommended for LED lights. An output for dimming compatible lights via a 0-10/1-10V signal and a DC output for relays/contactors are also available.

The following devices can be connected to the sockets:

AC supply air fans

AC exhaust fans

Lights

humidifier

Dehumidifier

Irrigation pumps

Recirculation fans

Electric heaters

cooling

CO₂ valves or CO₂ generators

Heating mats

If necessary, an additional PowerExtender can be connected to the second RJ45 socket on the device. This allows the number of outputs to be increased to a total of 25 with up to four PowerExtender 4+ devices.

The socket labeled "Lights 0-10V - Multi Out 5" also has a DC output (MOSFET) for relays/contactors.

The device is delivered in a drip-proof (IP42) housing with a wall mount and is ready for immediate use. A manual in German is included with the device.

Made in Germany

Dimensions (LxWxH) without connected cables	190mm x 170mm x 120mm
Length of the power cable	approx. 2 m
Power supply 1, 2 (each)	100-240V~ 10A 50-60Hz
Output power max. Multi Out "+1", "+3" (each)	600VA(W)@230V 310VA(W)@120V 2.6A
Output power max. Multi Out "+2", "+4" (each)	2300VA(W)@230V 1200VA(W)@120V 10A
Output power max. “Multi Out “+1” & “+2” (sum)	2300VA(W)@230V 1200VA(W)@120V 10A
Output power max. “Multi Out “+3” & “+4” (sum)	2300VA(W)@230V 1200VA(W)@120V 10A
DC output on port "Lights 0-10V - Multi Out 5"	12-24V DC 1A max.
Output current 0-10V output max.	20 mA
Protection type/protection class	IP42/Dual insulation

Downloads:

Quick Guide PowerExtender 4 plus
